📝 Product Description

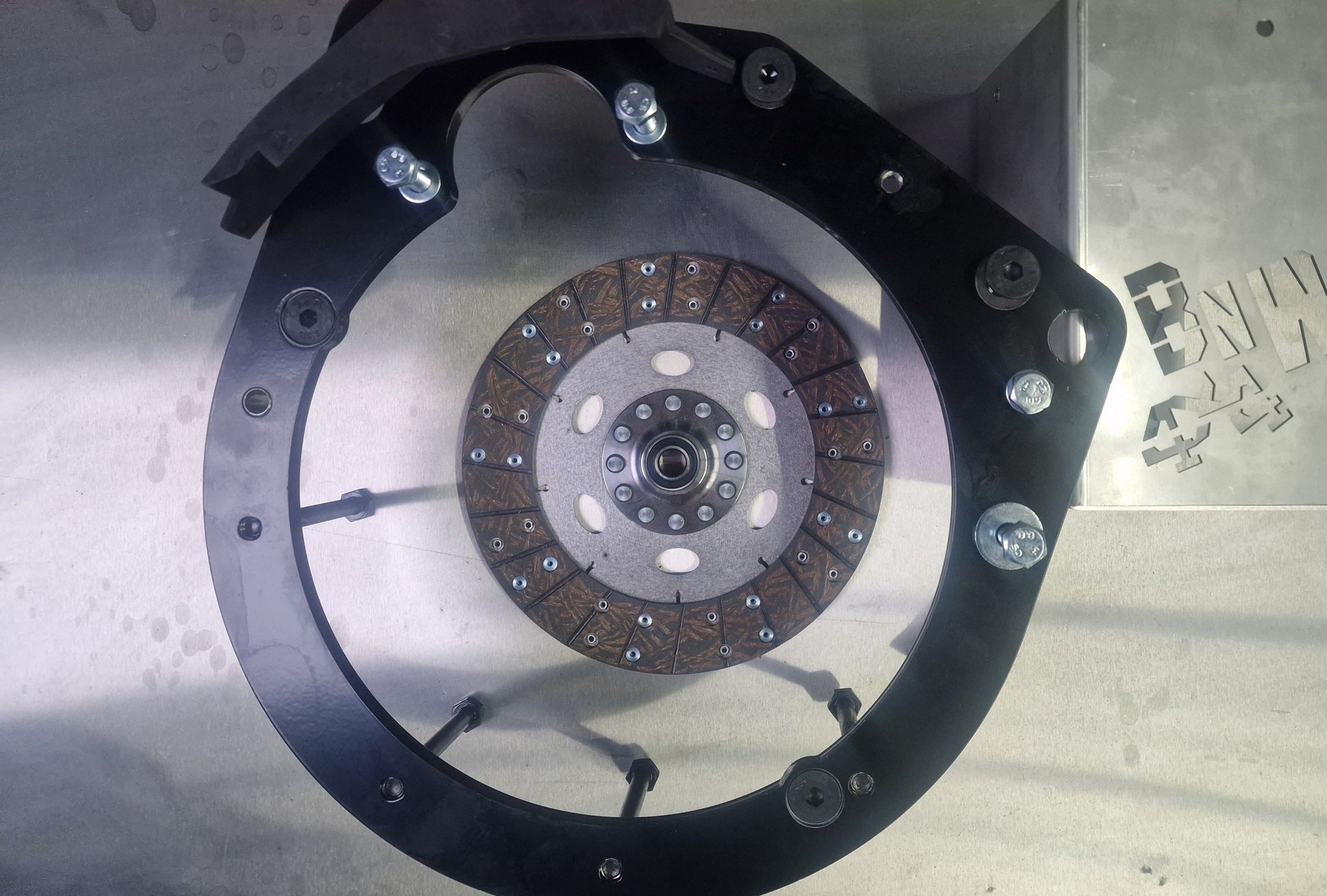

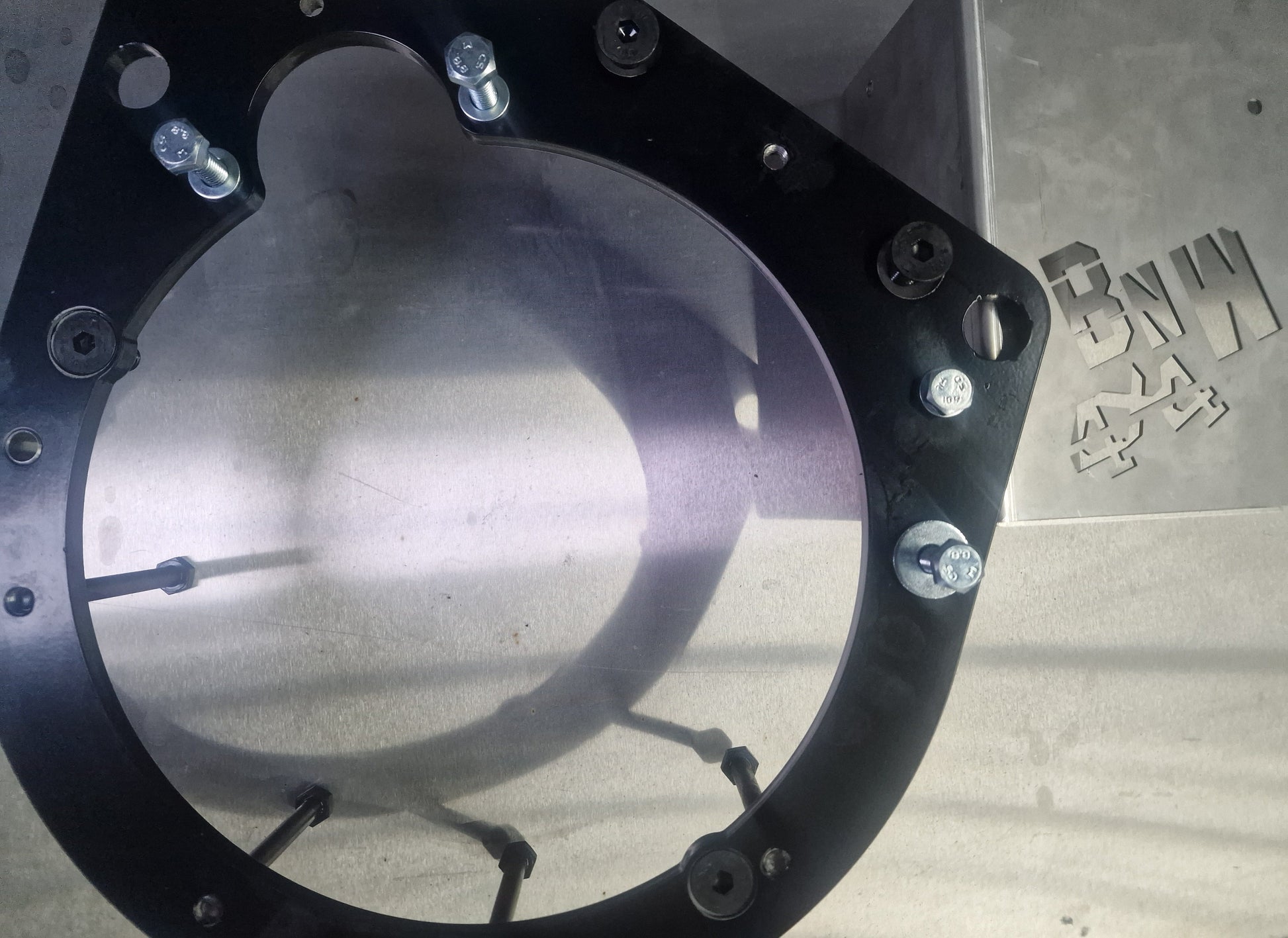

Precision-machined adaptor plate designed to mate BMW M57 diesel engines to the Ford MT82 gearbox, ideal for Transit and 4x4 conversions.

Developed from real-world builds, this kit allows you to retain key BMW components while integrating reliably with the MT82 platform. Built to handle the torque, weight, and abuse of van and off-road use, this is a proven solution—not a theoretical fit.

⚙️ Key Features

• Direct fit M57 → MT82 conversion
• Retains BMW starter motor position
• Designed for Dual-Mass Flywheel (DMF) setups
• Includes custom drive plate
• Compatible with:
  • SRE performance pressure plates
  • Standard self-adjusting (SAC) pressure plates
• Supplied with alignment dowels and required hardware
• Includes starter cut-out and CPS filler covers for a clean install
• Engineered for high torque / heavy vehicle use

🔩 Engine Compatibility

Compatible with BMW M57 engines found in:

• 3 Series
• 5 Series
• 7 Series
• X3 / X5
• Range Rover L322

✔ Narrow Block Engines

• 177hp
• 181hp
• 184hp
• 194hp
• 204hp

✔ Wide Block Engines

• Higher output variants (30d / 35d etc.)
• ❌ Excludes 2.5L engines (not recommended)

⚙️ Clutch & Flywheel Setup

Designed to be used with:

• BMW starter motor (included with engine)
• Dual-Mass Flywheel (DMF) (sold separately)
• Custom drive plate (included)
• Pressure plate options:
  • SRE performance pressure plate (recommended)
  • Standard self-adjusting (SAC) pressure plate

🔧 Pressure Plate Options

✔ SRE Performance Cover (Recommended)

• Best option for high torque / heavy vans / off-road use
• Designed to handle sustained load and abuse
• Ideal for builds pushing power or weight

✔ 50i Cover

• Suitable for lighter vans and Mk6 gearbox setups
• Higher clamping force → improved reliability over 30d
• Good middle-ground option

✔ 30d Cover (Optional)

• Suitable for lighter builds only
• Includes required spacer
• ⚠️ Do NOT reuse old 30d covers
  • Known weak point
  • Prone to slipping or failure under load

🧠 Recommendation

If it’s going in a Transit or anything heavy, run the SRE cover and avoid issues later.

📦 What’s Included

• CNC-machined adaptor plate
• Custom drive plate
• Alignment dowels
• Required bolts (non-OEM)
• Installation instructions
• Starter cut-out cover
• CPS (crank position sensor) filler cover (for a clean, sealed installation)

⚠️ Installation Notes

• Some OEM bolts must be cut to length (instructions provided)
• Ensure correct clutch setup based on vehicle weight and power
• Designed for experienced installers and conversion builds

🚚 Shipping

• Dispatched from the UK
• Fast turnaround available

💡 Recommended Setup

For a reliable, long-term setup:

👉 Dual-Mass Flywheel + SRE cover + this adaptor kit

This combination is proven to handle van weight and torque loads without slip or failure.

🧠 Why This Kit

Most adaptor setups fail due to:

• Poor alignment
• Weak clutch setups

This kit is designed to:

• Maintain correct drivetrain geometry
• Handle real-world torque loads
• Provide a complete, proven solution
